U-Clip

Uhing® U-Clip - shaft collar for smooth shafts / tubes

With Uhing® U-Clip Uhing set aside the easylock®  quick clamping system a simple and low-priced alternative.

As Easylock® Uhing® U-Clip is using a clamping ring, too which is offset to the shaft and therefore clamping forces and provided. Like a bushing the Uhing®-U-Clip is pushed forward against the to be fixed component and it automatically locks into position. To release, just pull the clamping ring towards the user.

Areas of application:

• Positioning on rotating and non-rotating shafts, e.g. wind-up and pay-off (not appropriate for torque transmission)
• Tube to shaft (or tube) connection, e.g. tripods
• Fixing components on shafts, e.g. dumb-bell weights
• Quick adjustment for material guiding, e.g. packaging machines

Advantages:

• Usage on hardened and soft surfaces
• Self locking
• One hand operation
• Symmetrical design
• High self locking force compared to ball systems with inclined level
• Corrosion protected
• Resistant against vibration

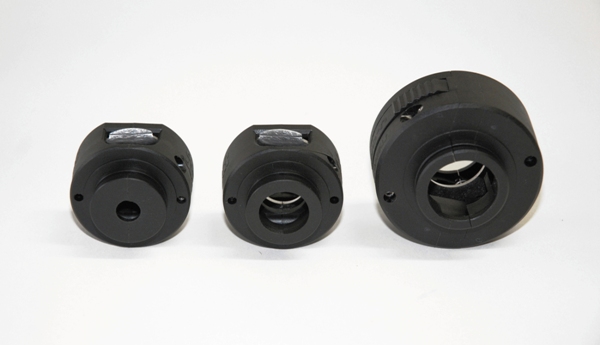

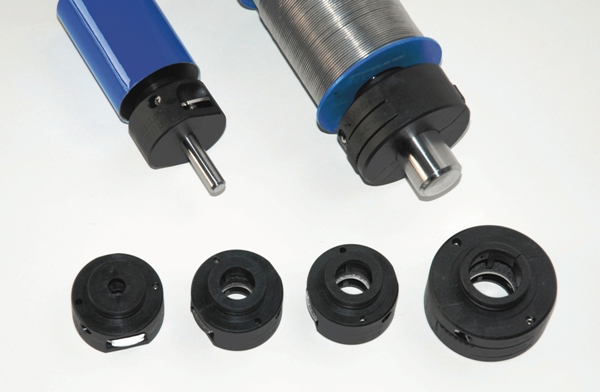

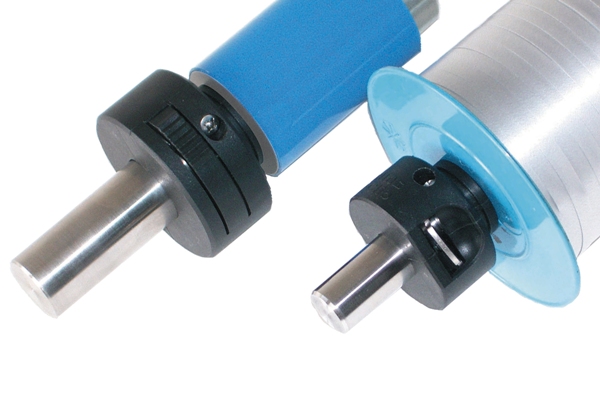

U-Clip pictures
